KickAss Quick Connect Low Voltage Disconnect (LVD)
KickAss Low Voltage Disconnect – Plug & Play Battery Protection
Safeguard your batteries from over-discharge with this easy-to-use Low Voltage Disconnect (LVD). Designed with Anderson-style connectors, it requires no hardwiring—just plug in and you’re ready to go.

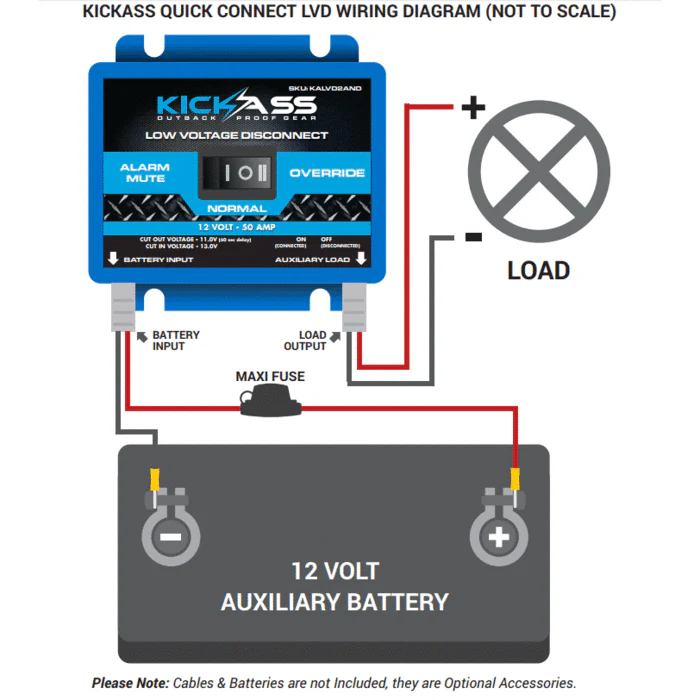

The LVD supplies power to your devices while monitoring battery voltage. An LED indicator displays your battery’s state of charge. When voltage drops to 11V, the device disconnects the load to prevent deep discharge, and only reconnects once voltage climbs back to 13V.
3 Operating Modes:
-
Normal: Disconnects at 11V with a 60-second warning alarm; reconnects at 13V.
-
Alarm Mute: Same as Normal Mode but silences the warning alarm.
-
Override: Bypasses voltage sensing for direct power—use only in emergencies.
